In BOMs, you can manage links in a merged cell, for example, when several components use the same manufacturer part.
Links in BOMs

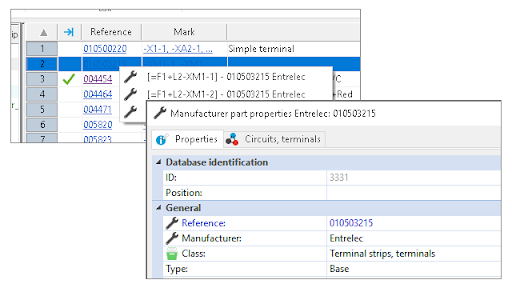

In a BOM or other reports, the report viewer displays links. These links display information like the properties, the location in the drawings of the selected element, or open the drawing and zoom the component. By clicking the right mouse button on the link, you can select the component you want to display the information
If you attach PDF files to the project as data files, you can export them in the exported PDF file.
Data files in export pdf

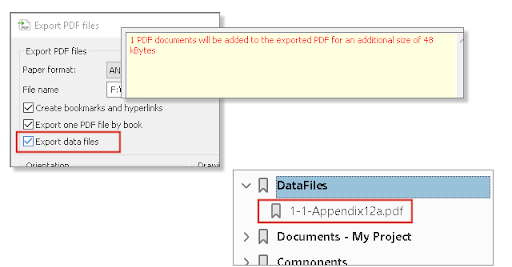

When you select Export data files, a message displays the PDF file size. The PDF file gathers all the datafiles in a new section.
When you edit report configurations in Expert mode, Test fully query includes the sort conditions and filters.

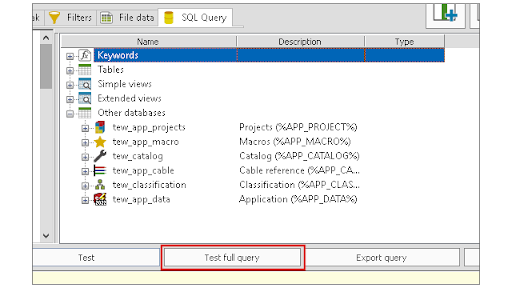

Test full query SW Electrical 2022
In report configurations, the Expert mode option is on the SQL Query tab.
If you connect the ERP data, you can display it in the Manufacturer Parts Manager.
Display ERP data

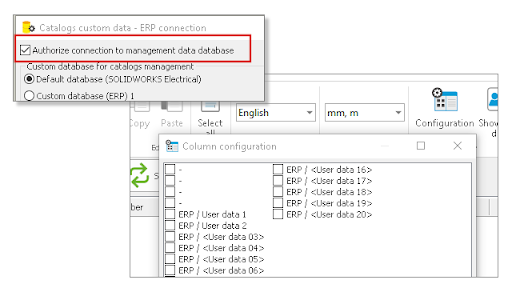

To display the ERP data in the Manufacturer Parts Manager, open the Column configuration and select the ERP data you want to show.
If you do not connect the ERP Data, you can only select the User data.
You can include the data sheets associated with the manufacturer parts in exported PDF files.
Datasheet in export pdf

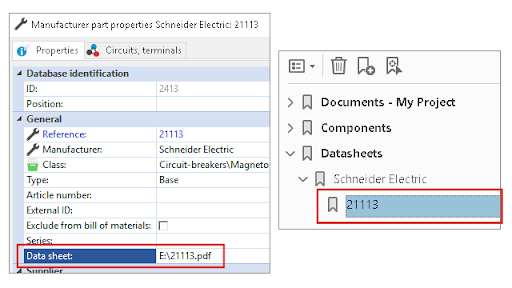

A data sheet is a file, or a link associated to a manufacturer part. When you export the project drawings in a PDF file, the data sheets appear in the Data sheets section of the PDF. Click Export PDF file and select Create bookmarks and hyperlinks to create the Data sheets section.
In the Report Manager, you can display a Break condition column that shows the field in which you have created the break condition.
Break Condition in Report Manager

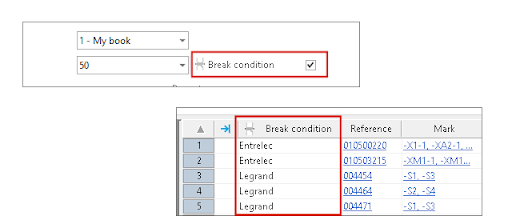

To display this column, select Break Condition. This column is not printable.
The user interface is enhanced to be more ergonomic and user friendly.

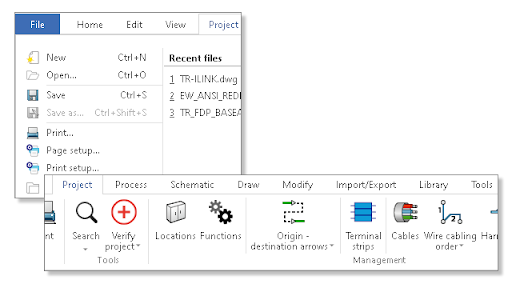

New icons in SOLIDWORKS Electrical 2022
In the Origin – Destination arrows feature, the attribute #P_CONNECTED_0 lets you display the mark of the components connected through the arrows.
Destination Arrow Feature

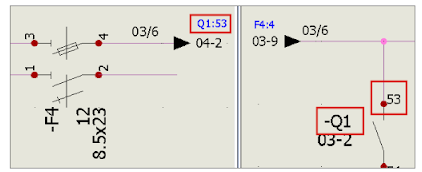

From the Symbols manager, edit the symbol of the type Origin – Destination arrows to add the attribute #P_CONNECTED_0.
When you number the wires, you can select a specific mode allowing you to display the wire number on the middle of the line segment.
Displaying the Wire Numbers
When you connect an equipotential to three or more components, this Display mode lets show all the wire numbers on the middle of the line segment. You can select this mode in the Wire styles manager.
Electrical Content Portal (ECP) is where you can download content, such as manufacturer parts, cable references, and files for 2D layouts.
ECP Integration

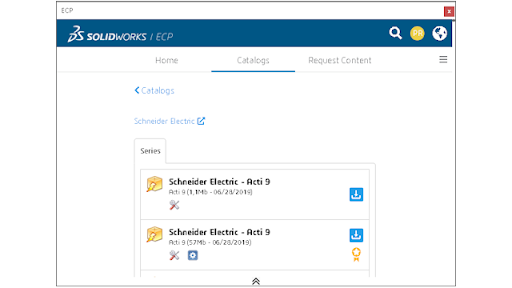

A dockable panel displays the ECP interface. It lets you download content and automatically unarchive it into the respective libraries
Connection points (CPoints) let you connect wires or cables with connectors.

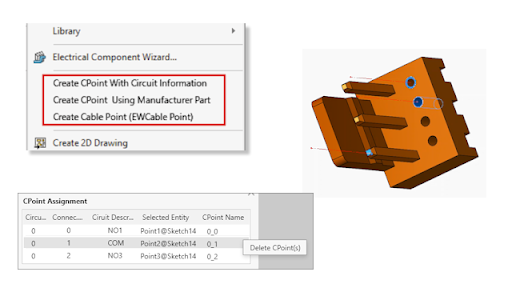

CPoints in SOLIDWORKS Electrical 2022
