Electromagnetic Engineer Role powered by SIMULIA CST Studio Suite is a well-known software package widely used in the field of electromagnetics for simulating and analyzing electromagnetic systems. SIMULIA CST Studio Suite provides tools specifically tailored for optimizing antenna placement in various scenarios. Designers can use these tools to place antennas for optimum electromagnetic performance and validate antenna placement early in the design process to minimize electromagnetic interference and prevent costly failures at a later stage.

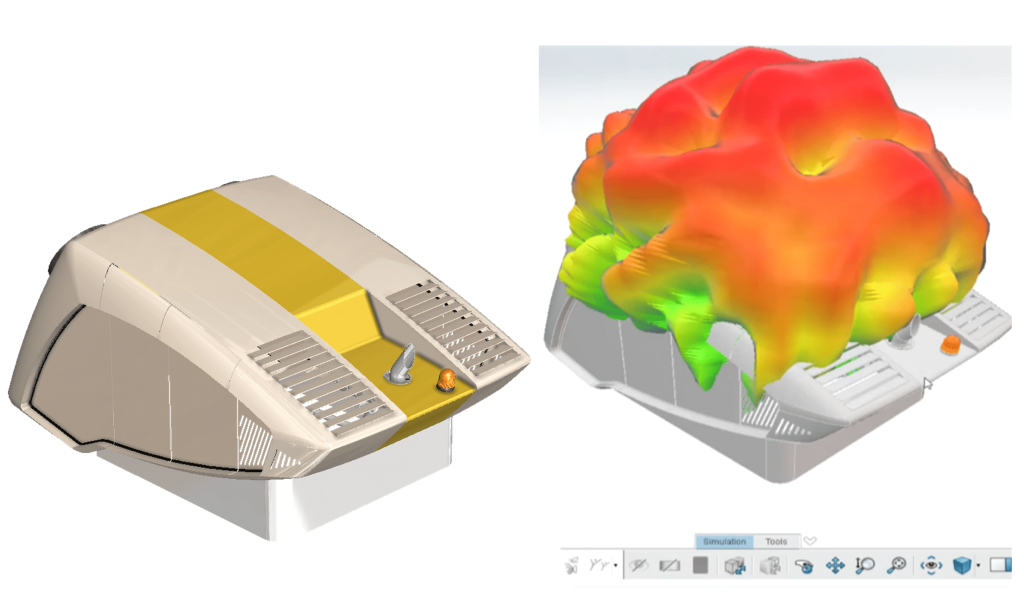

Fig 1. Antenna Farfield Calculation after placement in CST Studio Suite
Users can define and import the geometry of antennas, structures, and surrounding objects within the simulation environment. SIMULIA Antenna Magus can aid users with antenna geometry as it includes a library of pre-defined and pre-validated antennas to select from, each with its own specifications and radiation patterns.

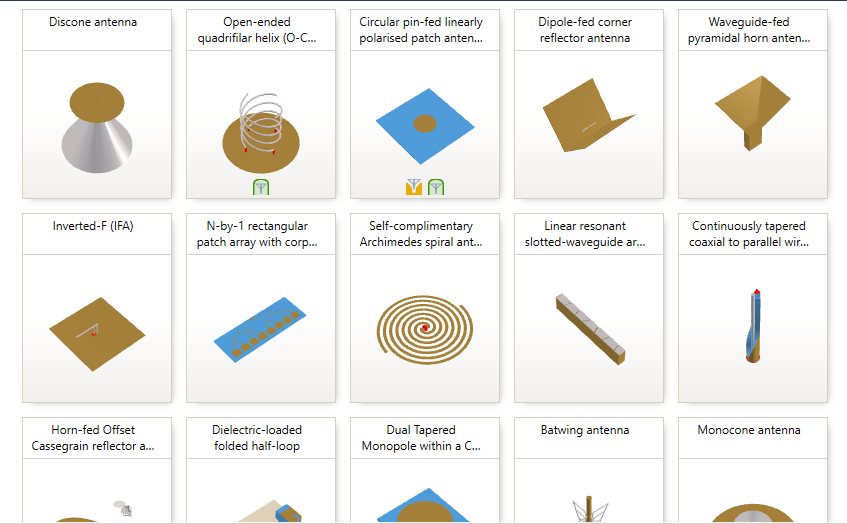

Fig 2. Antenna Magus Library
Users can then simulate different placements of antennas within a specific environment or structure to determine the optimal location that minimizes interference or maximizes coverage. Parametric sweeps can be performed, and optimization algorithms can be utilized to automatically find the best antenna placement based on specified criteria. Various metrics and analysis tools to evaluate the performance of the antennas in different placements, considering factors like gain, directivity, efficiency, and impedance matching are also available.

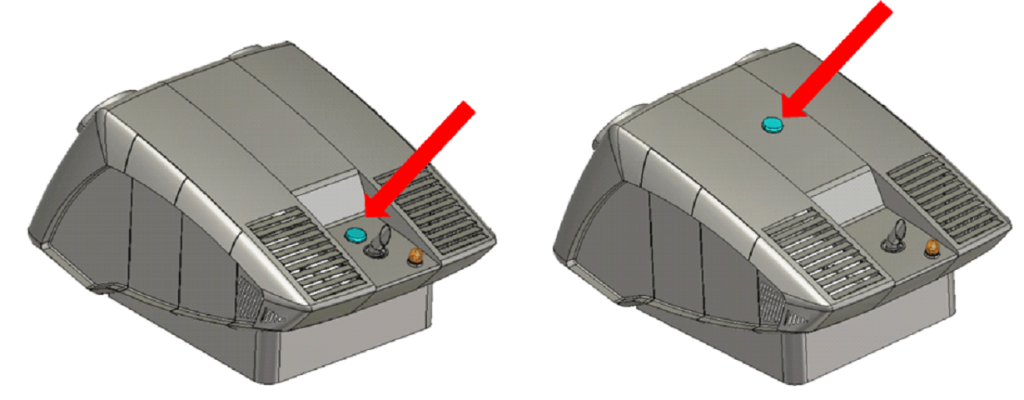

Fig 3. Antenna Position parameterization
CST provides tools to analyze and visualize radiation patterns of the antennas in different placement scenarios, aiding in understanding how the placement affects signal propagation. It is often integrated with other modules within CST Studio Suite, allowing for comprehensive analysis of the electromagnetic behavior of the entire system. Users can visualize simulation results through 3D plots, radiation patterns, and other graphical representations, aiding in decision-making for optimal placement. Detailed simulation results can be exported and reports summarizing the findings and recommendations for antenna placement can be generated.

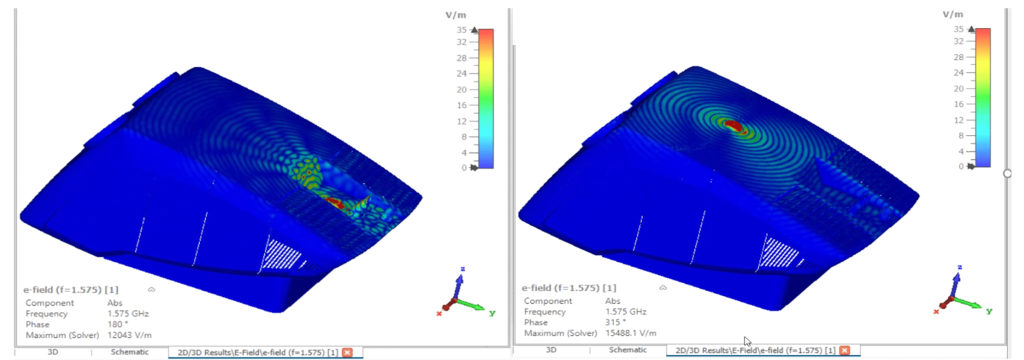

Fig 4. E-Field Plots for different antenna positions
In essence, antenna placement significantly influences the effectiveness, reliability, and efficiency of communication and electromagnetic systems. It’s a critical aspect that electromagnetic engineers carefully analyze and optimize to achieve the best performance in various applications, from wireless communication to radar systems and beyond.
Using CST Studio Suite for Antenna Placement, electromagnetic engineers can efficiently explore various placement options, assess their impact on antenna performance, and make informed decisions before physically implementing the antennas in real-world applications.
