SolidPlant 3D: Revolutionizing Plant Design for SOLIDWORKS Users

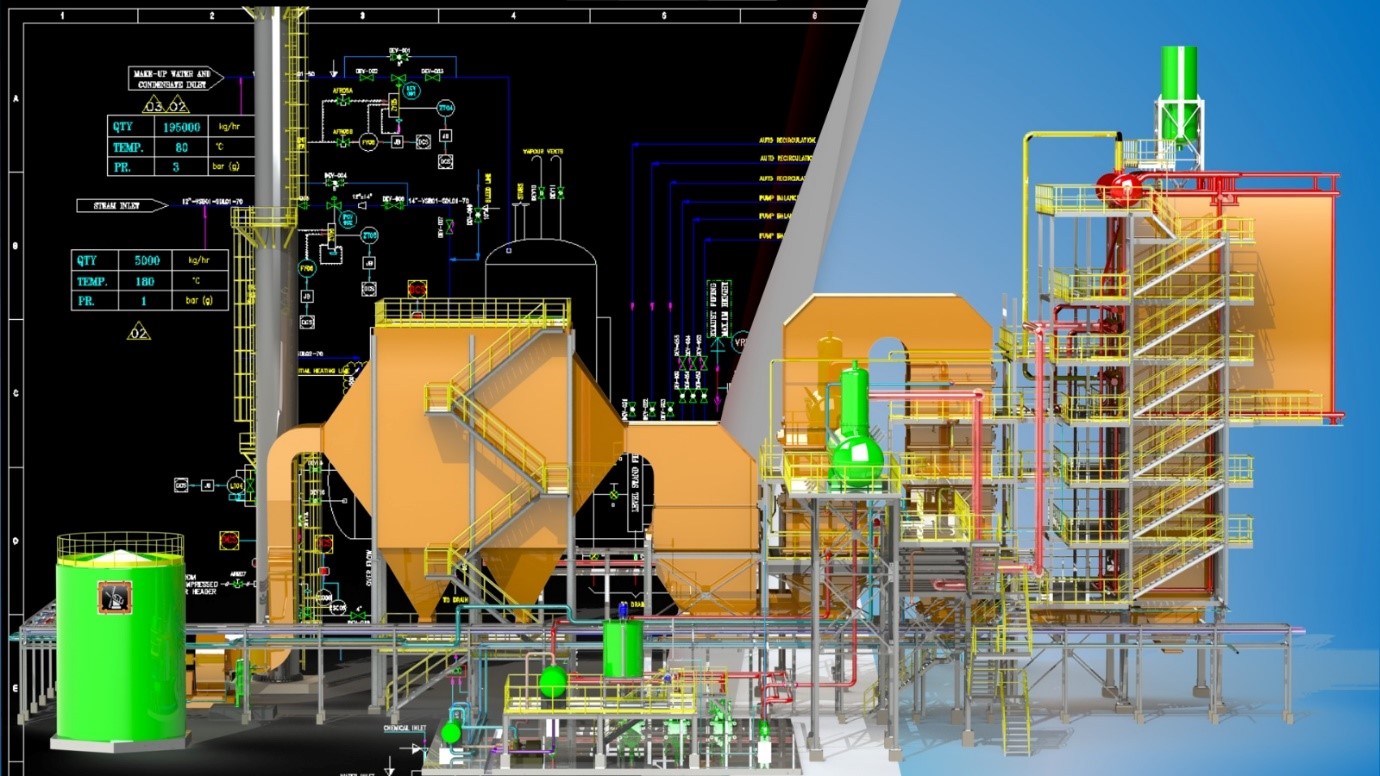

In the world of plant design, precision, speed, and flexibility are key. Enter SolidPlant 3D — the only truly specification-driven plant design software made exclusively for SolidWorks. SolidPlant 3D blends the powerful 3D MCAD capabilities of SolidWorks with a sophisticated, purpose-built plant design system, creating a seamless and efficient workflow for engineers and designers.

SolidPlant 3D
The one and only truly specification-driven plant design software for SolidWorks. SolidPlant has brought the best 3D MCAD capability into today’s world of plant design. Sophisticated, state-of-the-art new features will help you produce 3D models and all related production documents fast and easily. Work with highly accurate dimensions from SolidPlant’s vast piping specification database to prevent any mistakes on the bill of materials and other output documents.

SolidPlant 3D is the most comprehensive plant design system for SolidWorks. SolidPlant takes advantage of the superior SolidWorks capabilities, and a specification driven plant design system, combining them seamlessly. A great new solution for small- and medium-sized projects with a very competitive pricing.

SolidPlant 3D is a solution which enables the piping designers to design faster, more effectively and accurately in a SolidWorks environment. SolidPlant 3D is an easy-to-use package with a short learning curve (approx. 3 days of training for experienced piping designers).

SolidPlant 3D now brings a real 3D design environment with advanced features to the engineer’s desktop.

SolidPlant 3D is a 100% database and specification driven system, and runs as an add-in to SolidWorks Standard, Professional and Premium.

SolidPlant 3D includes a very big number of structural templates. Stairs, Platform, Walkway, Floor Plate, Ladder, Bracing, Truss, Handrailing, Pipe Bridge, Conveyor. The user will only have to enter the dimensional values, and SolidPlant will generate the 3D models automatically.

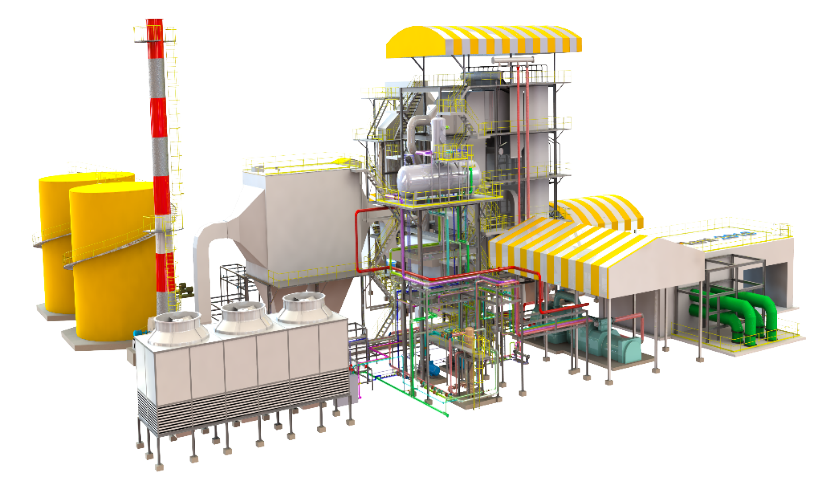

SolidPlant 3D also features fully parametric equipment templates of most of the typical equipment in plant design. Additionally, 3D models can be imported from SolidWorks or other 3D platforms.

SolidPlant 3D offers the most possibilities for pipe routing of all solutions in today’s market. Manual Route, Auto Route, Smart Route, Multi-Route Navigator. No other software offers the degree of flexibility and ease of use in pipe routing that SolidPlant offers.

SolidPlant 3D includes automatic generation of output documents, Isometrics, general arrangement drawings and bills of material. SolidPlant is also able to export the relevant files required for pipe stress analysis.

In addition, SolidPlant can make use of SolidWorks functionalities such as walk-through and crash detection.

SolidWorks + SolidPlant 3D = Perfect Match for Plant Design Engineers.
